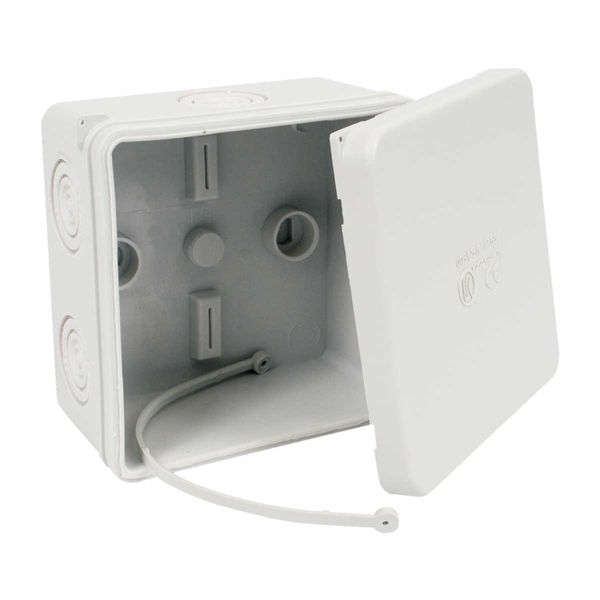

003.CS.K - Box, halogen free IP65 protection, configuration KB, grey colour/RAL 7035, package- 1/90pcs
Order only
Price (excl. VAT):
2,11 €
per pcs
EAN: 8595057624658
MPN: 003.CS.K_KB
Package: 1
Box: 66
Pallet: 2376
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | 003.CS.K - Box, halogen free IP65 protection, configuration KB, grey colour/RAL 7035, package- 1/90pcs |
| Brand | KOPOS |
| Categories |
Surface Mounted Junction Boxes
|
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3030 00 |
| Halogen free | Yes |
| Equipped with | None |
| Rated insulation voltage Ui | 500 V |
| Sealable | No |
| Max. conductor cross section | 4 mm² |
| Weatherproof | Yes |
| Degree of protection (IP) | IP65 |
| Inlet from the rear | Yes |
Packing details
| Packing level 1 | 8595057624658 |
| Packing level 2 | 8595057624658 |
| Packing level 3 | 8595057624658 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Colour | Grey |
| Width | 80 mm |
| Depth | 40 mm |
| Shape | Square |
| Diameter | 0 mm |
| Length | 80 mm |
| Operating temperature | -5-60 °C |
| Material | Plastic |
| Number of inlets | 8 |
| Explosion-tested version | No |
| Cover attachment | Snapped on |
| With screening | No |
| For tube diameter | Other |
| Tackable | Yes |
| Type of housing feed-through | Seal membrane |
| Cover model | Other |
| Castable | No |
| With casting compound | No |
| Transparent cover | No |
| Mounting in the soil | No |
| Mounting under water | No |
Downloads
Description
003.CS.K - Box, halogen free IP65 protection, configuration KB, grey colour/RAL 7035, package- 1/90pcs - equipped with an eye for sealing, for installation on materials with fire classes A2-F use thermally insulating pad
